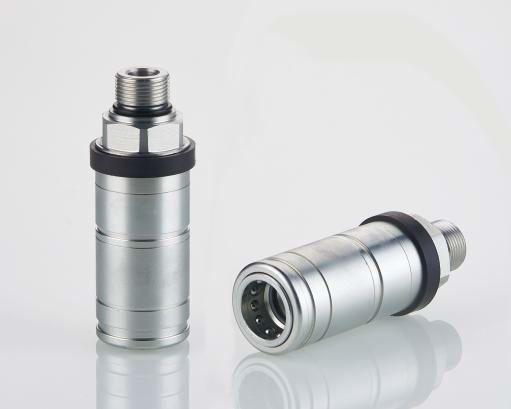

Name: CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-205
Availability: InStock

家へ > 製品 > 油圧速いカップリング >

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

起源の場所:

中国

ブランド名:

carterberg

証明:

IATF16949

モデル番号:

CB-205

連絡ください

引金を求めてください

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

製品の詳細

タイプ:

ISO 7241A

材料:

亜鉛塗装鋼,不?? 鋼

サイズ:

1/4"-1"

定格圧力:

2900 PSI ((20 MPa) まで

密封剤材料:

NBR (標準),Viton,EPDM (オプション)

繋がり:

プラグおよびソケット

バルブ:

ボール / 人形

交換:

パーカー6600,Faster ANV,Stucchi Aシリーズなどに対応する.

支払いおよび配送条件

最小注文数量

交渉

価格

交渉可能

パッケージの詳細

カートン

受渡し時間

7-20勤務日

支払条件

L/C、D/A、D/P、T/T、Western Union

供給の能力

5000〜20000 PC/月

CB-VVS Steel thread locked type chrome plating hydraulic quick coupling

最良の価格を入手する

CB-VF Steel Hydraulic Quick Coupling Poppet Valves Oil & Construction Equipment

最良の価格を入手する

CB-10M Series Hydraulic Quick Couplings - ISO 7241-A Compliant & Leak-Proof for Industrial Use

最良の価格を入手する

ISO Series Hydraulic Quick Couplings - Durable & Leak-Proof for Construction & Industrial Use

最良の価格を入手する

連絡ください

86-021-37214610

今連絡してください

製品説明

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

The CB-205 Series hydraulic quick couplings are engineered for heavy-duty applications in construction, forestry, and hydraulic machinery. Featuring a double-acting sleeve for one-handed push-to-connect operation, they ensure efficient coupling even in clamp or bulkhead mounts. Equipped with poppet valves to prevent uncoupled leakage, these couplings maintain automatic flow within rated pressure for uninterrupted performance. Critical hardened components enhance durability, while ISO5675 compliance guarantees reliability. Compatible with PARKER 4250 and FASTER CPV-CNV Series, they offer seamless integration into existing systems. Ideal for demanding industrial environments, these couplings prioritize safety, ease of use, and robust performance.

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Flow (GPM)	Temperature range(std seals)	Standard seal material
1/2"	3000	12	-20℃~+80℃	NBR

Dimensional Overview

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry 0

Body Size	PARTNO.	LS	Φ D	HS	A	T
1/2"	CB-205	111	38	32	23.8	BSP1/2 NP T1/2
