起源の場所:
上海,中国
ブランド名:
carterberg
証明:
IATF16949
モデル番号:
CB-3
COMPATIBLE WITH PARKER MOLDMATE SERIES SMALL MEDIUM LARGE MOULD BRASS COUPLING

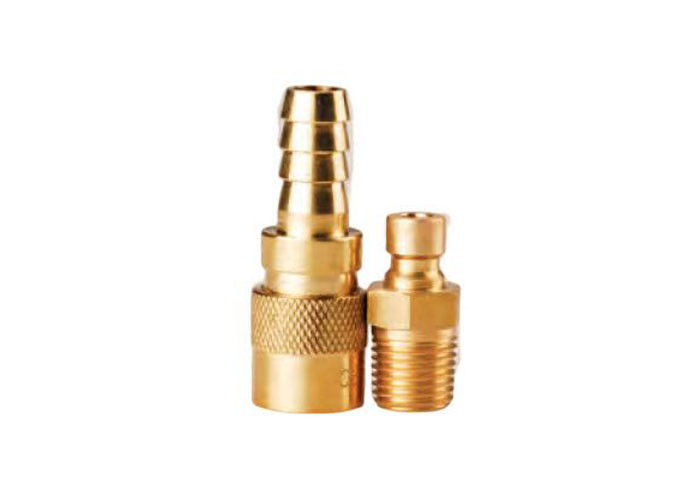

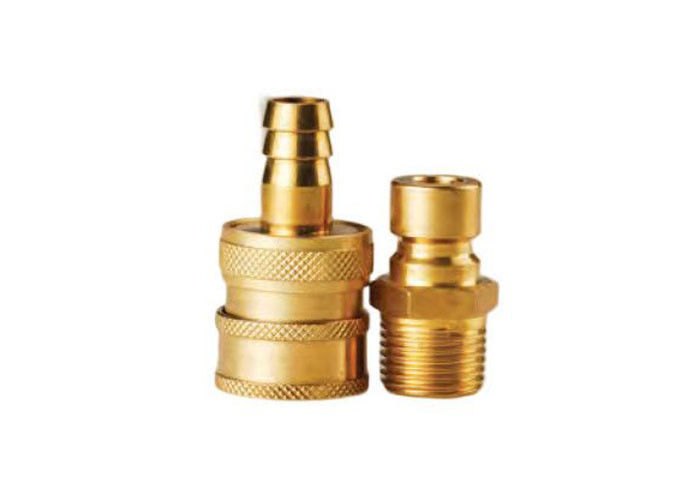

MOULD QUICK COUPLING(SMALL)(BRASS)
→ Features: it specifically design for the cooling system and injecting mold machine.
→ Advantages: simple structure. High flow. Non-valve.
→ Application: the line of modular, cooling system.
→ Interchangeability: PARKER MOLDMATE series.
→ Working Pressure: 1.5Mpa.
→ Working Temperature: -15℃ to +150℃
| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| CB-Q1-01SM | 38 | 18 | 17 | 13 | ZG1/8 | ￠6 |
| PARTNO. | LS | ￠D | ￠CS | A | ￠T | d |
| CB-Q1-03SH | 49 | 18 | 16 | 22 | 11 | ￠7 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| CB-Q1-01PM | 27.5 | 11 | 12 | 9.5 | ZG1/8 | ￠5 |
| CB-Q1-02PM | 30 | 11 | 14 | 13 | ZG1/4 | ￠5 |
| PARTNO. | LP | C | HEX2 | T | d |
| CB-Q1-01PM | 75 | 11 | 12 | ZG1/8 | ￠5 |
| CB-Q1-01PM | 100 | 11 | 12 | ZG1/8 | ￠5 |
| CB-Q1-01PM | 125 | 11 | 12 | ZG1/8 | ￠5 |
| CB-Q1-01PM | 150 | 11 | 12 | ZG1/8 | ￠5 |
| PARTNO. | LP | C | HEX2 | T | d |
| CB-Q1-02PM | 75 | 11 | 14 | ZG1/4 | ￠5 |
| CB-Q1-02PM | 100 | 11 | 14 | ZG1/4 | ￠5 |
| CB-Q1-02PM | 125 | 11 | 14 | ZG1/4 | ￠5 |
| CB-Q1-02PM | 150 | 11 | 14 | ZG1/4 | ￠5 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
